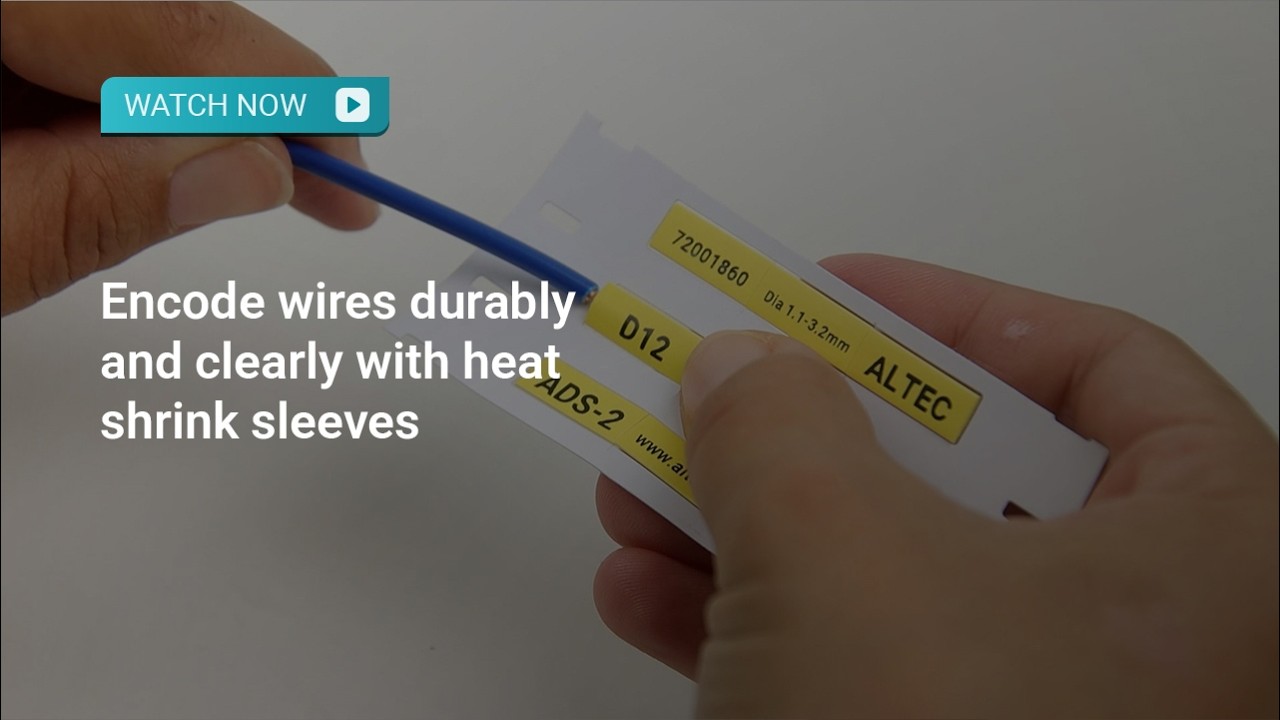

Encode wires durably and clearly with heat shrink sleeves
ADS Sleeves | 50x7 mm | Yellow | 750 per rollThe correct label size depends on the diameter of the cable or wire you want to identify. If your cable or wire has a diameter between 0.8 and 2.4 mm, the label height is 5 mm. The width of the label depends on how many labels you want per row.
Cable or wire diameter |
| 0,8 – 2,4 mm | ADS-1 |
| 1,1 – 3,2 mm | ADS-2 |
| 1,6 – 4,8 mm | ADS-3 |
| 2,1 – 6,4 mm | ADS-4 |
| 3,1 – 9,5 mm | ADS-5 |
| 4,2 – 12,7 mm | ADS-6 |
| 6,3 – 19 mm | ADS-7 |
| 8,4 – 25,4 mm | ADS-8 |
| 12,7 – 38,1 mm | ADS-9 |
Label height |
| 5 mm |
| 7 mm |
| 9 mm |
| 12 mm |
| 15 mm |
| 20 mm |
| 30 mm |
| 40 mm |
| 60 mm |
Number of labels per row
Our ADS Sleeves are available in various widths: 50, 25, 16.7 and 12.5 mm. The width of your label determines whether you can apply 1, 2, 3 or 4 labels per row.
The selected ADS Sleeves are suitable for cables and wires with a diameter of 1,1 - 3,2 mm.
ADS Sleeves are printable heat shrink sleeves and are most commonly used for wire identification. You slide a heat shrink sleeve over a wire, then use a heat source to shrink the labels so they fit perfectly around the wire. This is an efficient way to quickly identify wires in control cabinets. It also provides a clear reference point during maintenance and repairs. ADS heat shrink sleeves have a shrink ratio of 3:1, are available in white and yellow, and are halogen-free, low smoke, and flame-retardant. They also comply with certifications such as SAE AS-5942 and MIL 202 Method 215K.
Certified compliance
Do you work in an environment where you must meet certifications such as SAE-AMS-DTL-23053/5, Airbus NSA 937201, and NFPA 130? Then you'll need our ADSC Sleeves. The material of these printable heat shrink sleeves complies with even more certifications than our ADS Sleeves and is available in various colors.

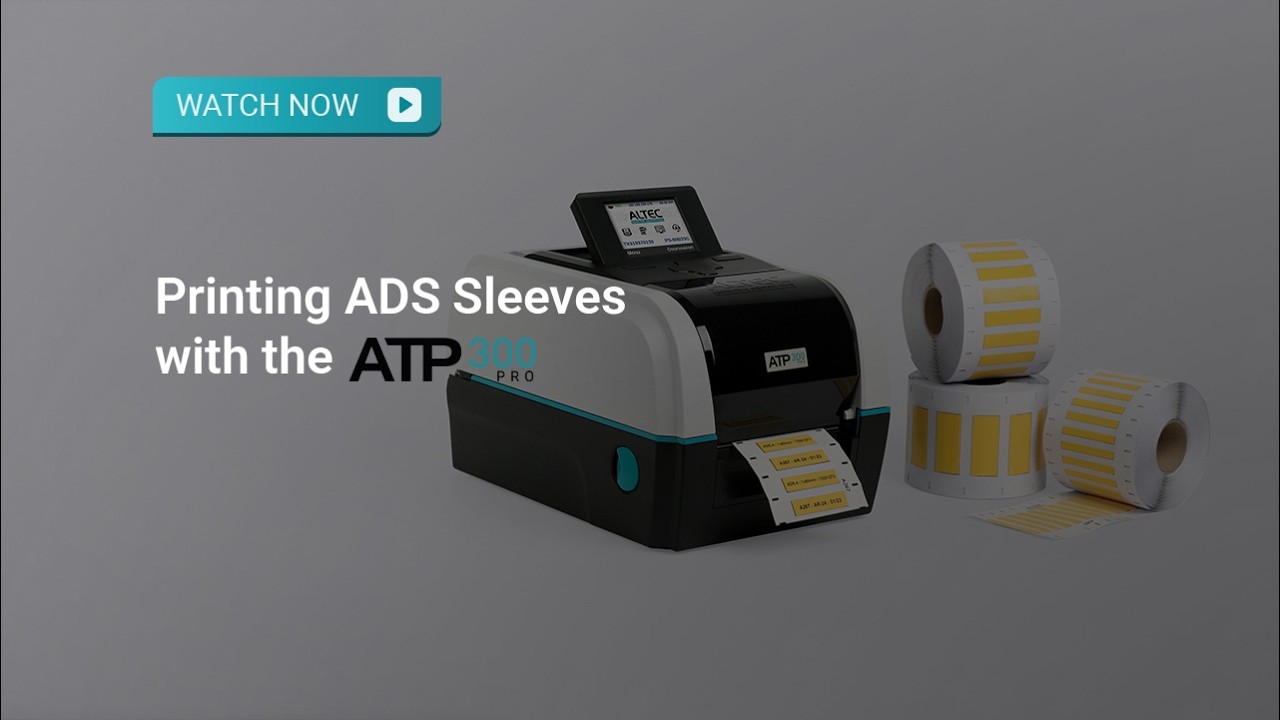

Heat shrink sleeve label printer
You can print our ADS Sleeves using the ATP-300 Pro. This label printer allows you to independently print and mark heat shrink sleeves. The advantage of the ATP-300 Pro is that it is compatible with nearly all of our label materials. This means you're not just choosing a heat shrink sleeve printer, but a printer capable of handling almost all types of labels.
Explore the full range
In addition to our printable heat shrink sleeves, we also offer other forms of wire marking.
